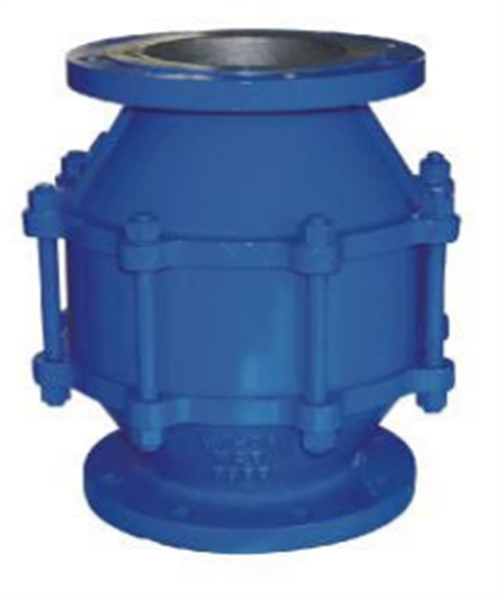

Flame Arrester

ZH type Flame arrester is deflagration/detonation flame arrester,which can be installed at or bedside the end ofpipeline or on the top of storage tanks to prevent the transmission and diffuseness of deflagration.

Design Features:

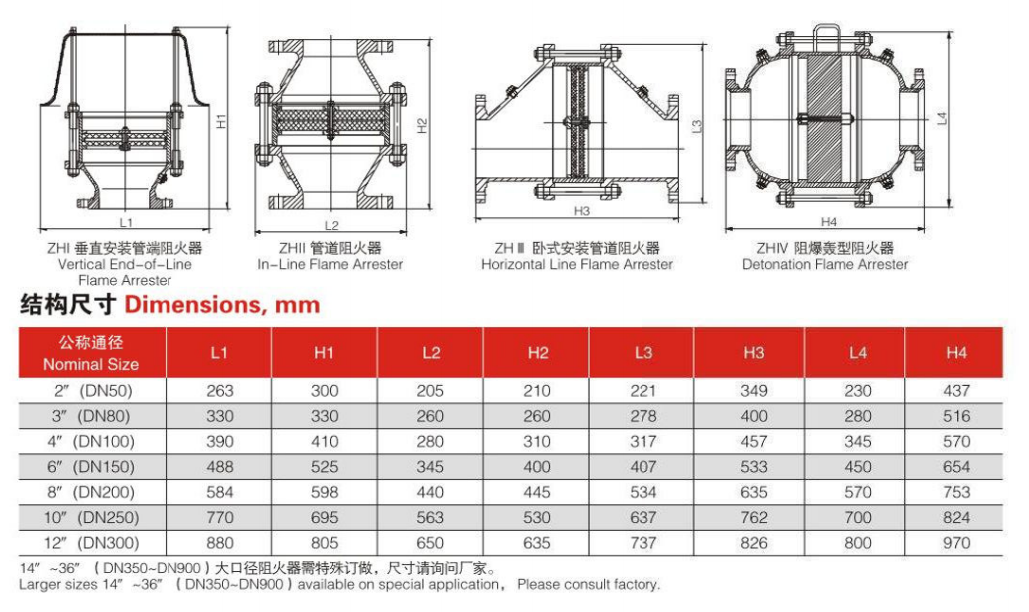

◆Sizes available2"~12"(DN50~DN300);
◆Proven spiral wound,crimped ribbon ,flame element;
◆Low pressure drop with multiple element sizes available for each flange size;
◆Easy cleaning,Bi-directional flame arresting;
Suitable for standingtanksk Containingfist categoryoilwhoseflashflashpointislowerthan28°Corsecond categoryoilwhoseflashpointislowerthan60°C,suchaspetroleum,toluene,Kerosene,coaloilandbaseoil;
◆Can be used with Pressure/Nacuum Relief Valve;Vertical or horizontal installation;
◆Steam Jacket、Blowing Hole、Test Hole Absorber are options to client;
◆Designed and tested according to GB/T 13347、GB/T 5908;
◆The flanges are accordance with ANSI B16.5,or EN1092、GB/T9113、JIS;
◆Available Materials: Aluminum、Carbon Steel、Stainless Steel、Special Materials on Application;
