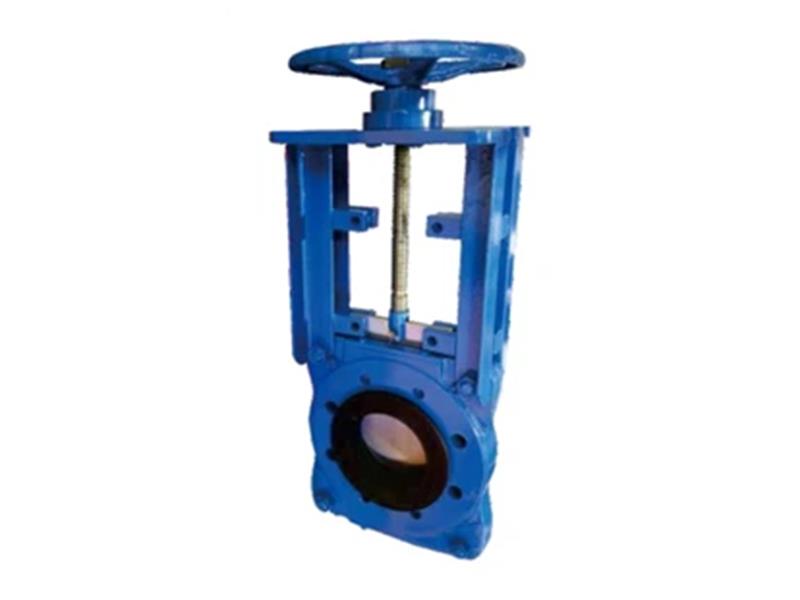

Knife gate valve is usually an uni-directional wafer type valve designed according to MSS SP-81. The design of the body and seat assures non-clogging shut off on suspended solids in all kinds of industries.Scope of Application: Pulp and paper, Mining, Bulk transport, Waste water treatment plant, Power plants, Food and Beverage, Chemical plantsSize range: DN50-DN1200, larger diameter on requestThe maximum working pressure: DN50-DN250: 10bar, DN300-DN450: 7bar, DN500-DN600: 4bar, DN700-DN1200: 2barThe standard flange connection: DIN PN6, PN10, PN16, PN25; ANSI B16.5 CL150; BS TABLE "D" "E"
