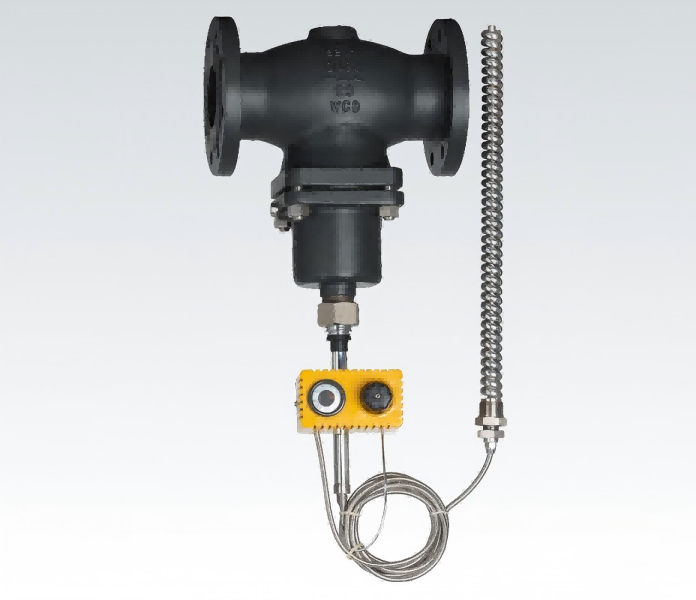

Self-operated Temperature(Heating Type) Control Valve

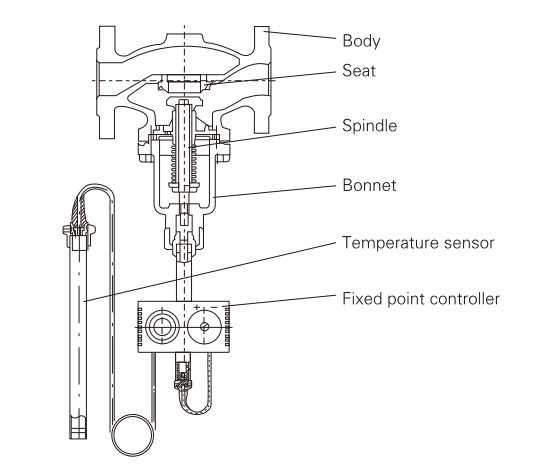

The 30T01Y/30T01R self-operatedtemperature(heating type)controlvalve is composed of the control valveanda temperature controller providedwith fixed point control.
It is suitable for controling differentialpressure in the pipes of non-crrosiveliquids,gases and steams.when thetemperature of the controlled mediumsrises,the control valve is closed
The main features are as follows:
1.It has the pressure balancingfuncti onwith high sensitivity.
2.Low noise, reliable performance, freeof maintenance
3.The standard modular design is adopted.
4.It adopts the imported fixed point controller,which has the over temperature protectionfunction withreliablequality.
5.Various combined controls can be carriedout through the assemblies.
