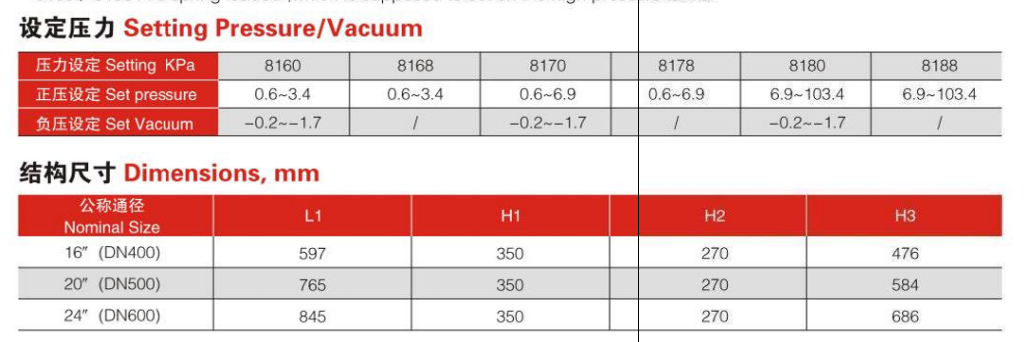

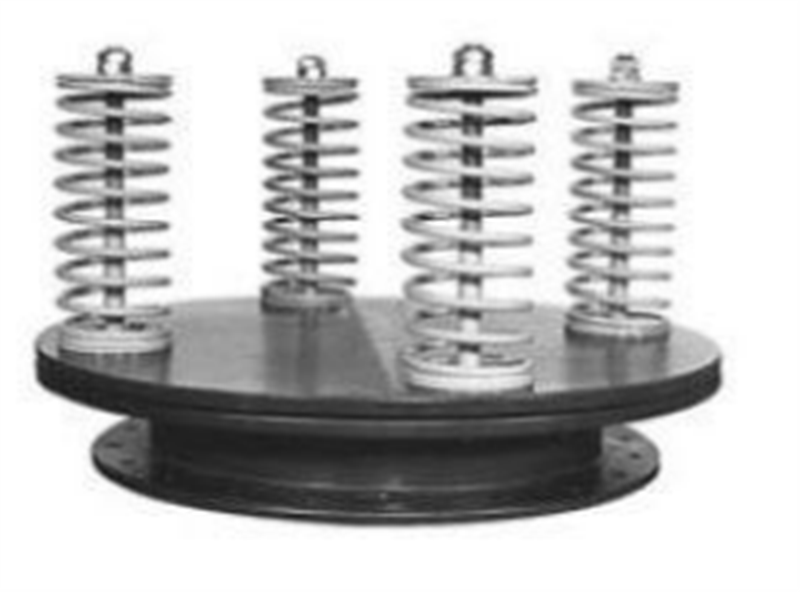

The 8160 Emergency Pressure Relief Valve are designed to provideemergency relief capacity beyond that furnished by the normal operatingpressure relief valve on the tank.The valve protects the tank against rupture orexplosion that could result from excessive internal pressure caused by fire.Design Features:◆Sizes available 16”、20”、24”;◆Designed and tested according to API 2000;◆The flanges are accordance with ANSI B16.5,or EN1092、JIS;Available Materials:Aluminum、Carbon Steel、Stainless Steel、Special Materials on Application;◆8160、8168 valves are hinged with lift stop for positive reseating;8170、8178 Designed with guide sleeves can provides removable stop and restrict thelift of the cover;◆8180、8188 Are spring loaded,which is supposed to set on the high pressure tanks.
